TNMG TM CO05S
TNMG TM CO05S
Cargo Carbide TNMG TM CO05S Carbide Turning Inserts are designed for CNC turning and general steel machining applications where dependable cutting performance, edge strength and consistent tool life are required.
The TNMG 160404, TNMG 160408 and TNMG 160412 sizes provide different nose-radius options for a range of roughing, semi-finishing and general turning requirements. The negative triangular TNMG geometry offers multiple usable cutting edges and is widely used with compatible CNC turning tool holders.
The CO05S grade is a yellow carbide grade intended for steel machining, heavy roughing and semi-finishing of steel forgings and general engineering components. It is suitable for production machining applications where a strong and reliable cutting edge is required.
Cargo Carbide TNMG TM CO05S inserts can be selected according to the required nose radius, machining condition, material and cutting parameters.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cargo Carbide |
| Insert Type | TNMG |
| Geometry | TM |
| Grade | CO05S |
| Insert Colour | Yellow |
| Work Material | Steel |
| Work Material Group | P |
| Sizes | 160404 / 160408 / 160412 |
| Application | CNC Turning |
| Operation | Roughing / Semi-Finishing |
| Insert Shape | Triangular |
| Relief | Negative |
| Cutting Edges | Multiple usable edges |
Available Sizes
| Model | Nose Radius | Typical Use | ||
|---|---|---|---|---|

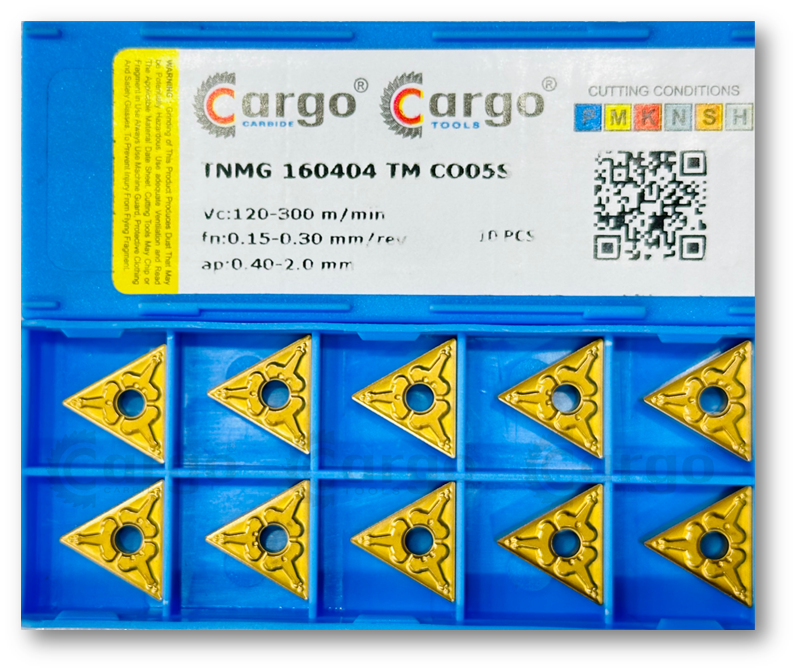

| TNMG 160404 TM CO05S | 0.4 mm | Finishing / lighter cuts | ||

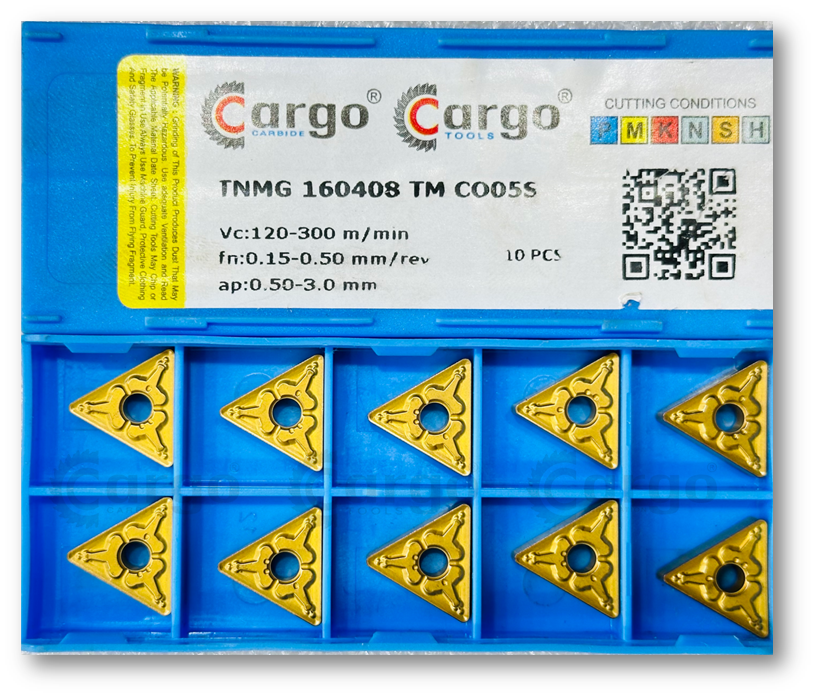

| TNMG 160408 TM CO05S | 0.8 mm | General turning / semi-finishing | ||
| TNMG 160412 TM CO05S | 1.2 mm | Roughing / heavier cutting |
Applications
- CNC steel turning
- Steel forgings
- General engineering components
- Automotive components
- Shaft machining
- Bush machining
- Rough turning
- Semi-finishing
- Production CNC machining
Why Choose Cargo Carbide TNMG TM CO05S?
- Yellow CO05S carbide grade
- Designed for steel machining
- Suitable for heavy roughing and semi-finishing
- TNMG negative triangular geometry
- Multiple usable cutting edges
- 160404, 160408 and 160412 sizes available
- Suitable for compatible TNMG CNC turning holders
- Suitable for general industrial machining
What is TNMG 160408 CO05S used for?
What is the difference between TNMG 160404, 160408 and 160412?
What material is CO05S used for?
Is TNMG 160408 CO05S suitable for CNC turning?
Which TNMG size should I choose?
Important: The exact recommended cutting parameters should be selected according to the machine, workpiece material, rigidity, depth of cut, feed and cutting conditions.
TNMG 160408 CO05S is a carbide turning insert designed for CNC machining of steel. It is suitable for general turning and semi-finishing applications, depending on the machining conditions.
The main difference is the nose radius. TNMG 160404 has a 0.4 mm radius, TNMG 160408 has a 0.8 mm radius, and TNMG 160412 has a 1.2 mm radius. The appropriate size depends on the required surface finish, cutting conditions and machining operation.
According to the Cargo Carbide grade chart, CO05S is intended for steel, particularly heavy roughing and semi-finishing of steel forgings and general machining.
Yes. TNMG 160408 CO05S is intended for compatible CNC turning applications, particularly steel machining.
The choice depends on cutting conditions. 160404 is generally suited to lighter/finishing work, 160408 is a versatile general-purpose option, and 160412 is better suited to heavier cutting conditions.
