Cargo Carbide TNMG FW CO25S Carbide Turning Inserts are designed for CNC turning applications in steel where reliable cutting performance is required under challenging machining conditions. The TNMG-FW geometry is available in multiple sizes and is suitable for compatible negative turning tool holders.

The CO25S carbide grade is part of the Cargo Carbide steel-grade range and is recommended for suitable TNMG-FW applications. Cargo Carbide's published grade chart lists CO25S for TNMG-FW in 160404, 160408 and 160412 sizes.

TNMG-FW inserts feature a triangular negative configuration and are commonly used for CNC turning operations where a stable cutting edge and multiple usable cutting edges are beneficial. The FW chipbreaker/geometry is associated with finishing-oriented applications in comparable TNMG-FW tooling.

Cargo Carbide TNMG FW CO25S is suitable for manufacturers looking for a carbide turning insert for steel machining, including general CNC turning, semi-finishing, finishing and appropriate difficult or interrupted machining conditions.

The available nose-radius options allow the user to select the appropriate insert according to workpiece geometry, cutting depth, feed, machine rigidity and required surface finish.

Technical Specifications

Available Sizes

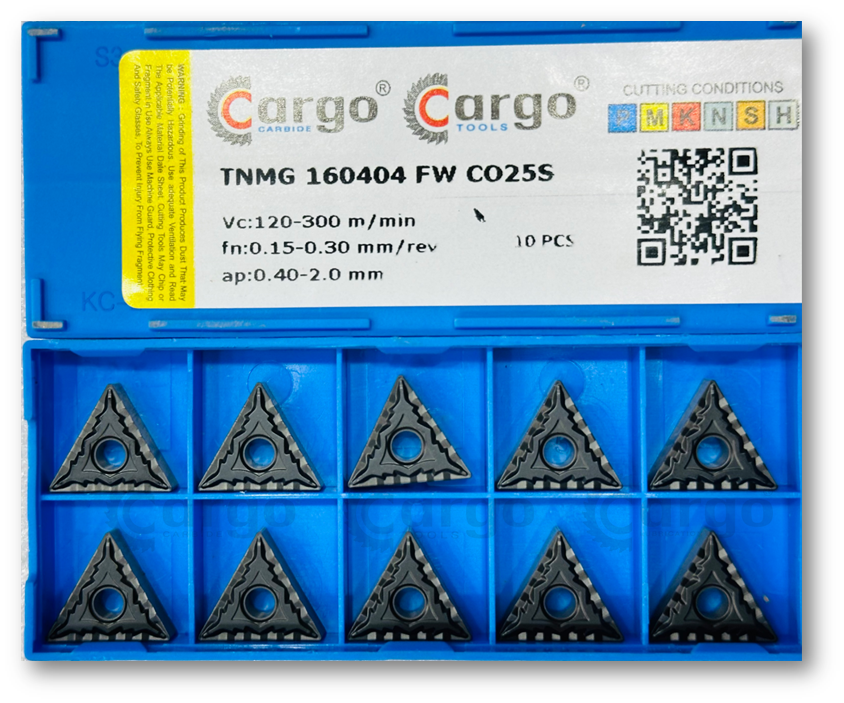

TNMG 160404 FW CO25S

0.4 mm nose radius

Suitable where a smaller nose radius is required for lighter cutting and finer component geometry.

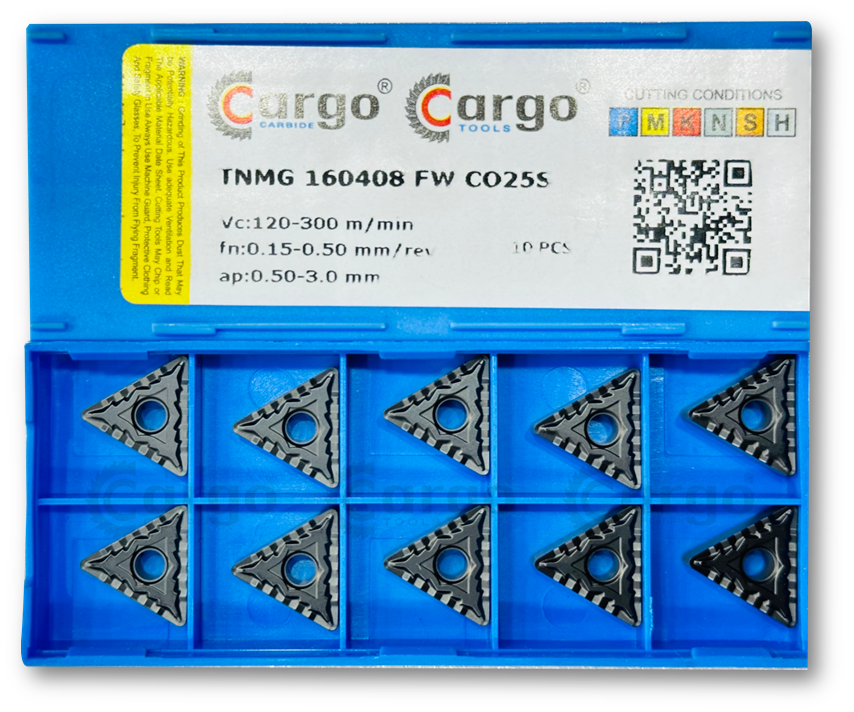

TNMG 160408 FW CO25S

0.8 mm nose radius

A versatile option for general CNC turning and finishing/semi-finishing applications.

TNMG 160412 FW CO25S

1.2 mm nose radius

Suitable where the machining application requires a larger nose radius and appropriate cutting conditions.

CO25S Grade

Cargo Carbide CO25S Carbide Grade

CO25S is a Cargo Carbide grade used for suitable steel machining applications. In your grade system, it is identified by a black-and-yellow appearance.

Recommended machining applications include:

• Steel CNC turning
• Difficult machining
• Interrupted turning
• Semi-finishing
• Finishing
• General engineering
• Production machining

Applications

Cargo Carbide TNMG FW CO25S can be used for suitable:

• CNC steel turning
• External turning
• Semi-finishing
• Finishing
• Steel component machining
• General engineering
• Automotive component machining
• Shaft machining
• Bush machining
• Production CNC turning
• Interrupted turning applications

Why Choose Cargo Carbide TNMG FW CO25S?

• TNMG-FW geometry
• CO25S carbide grade
• Black & yellow grade identification
• Steel machining application
• 160404 / 160408 / 160412 sizes
• Multiple nose-radius options
• Negative triangular insert design
• Compatible with suitable TNMG tool holders
• Suitable for CNC turning applications
• Cargo Carbide industrial tooling

What is TNMG FW CO25S?

TNMG FW CO25S is a Cargo Carbide carbide turning insert combination using TNMG geometry, FW chipbreaker/geometry and the CO25S grade for suitable steel machining applications.

What is TNMG FW used for?

TNMG-FW inserts are used for suitable CNC turning operations, particularly applications requiring controlled finishing/semi-finishing performance. Comparable TNMG-FW manufacturer data describes the family as a negative triangular insert with a wiper edge for finishing.

What material is CO25S used for?

Cargo Carbide's published grade chart places CO25S in the steel insert range, including TNMG-FW applications.

What sizes are available in TNMG FW CO25S?

The Cargo Carbide catalogue lists TNMG-FW 160404, 160408 and 160412 with 0.4, 0.8 and 1.2 mm nose radii.

What is the difference between TNMG 160404, 160408 and 160412?

The primary difference is the nose radius: 0.4 mm, 0.8 mm and 1.2 mm respectively. Selection should depend on the workpiece, cutting conditions, required finish and machining setup.

Is TNMG FW CO25S suitable for CNC turning?

Yes. TNMG-FW is a negative turning-insert geometry and CO25S is listed by Cargo Carbide for suitable steel-turning applications.
