TNMG FW CO05S Carbide Turning Insert
TNMG FW CO05S Carbide Turning Insert
Cargo Carbide TNMG FW CO05S Carbide Turning Insert
Cargo Carbide TNMG FW CO05S Carbide Turning Inserts are designed for CNC turning applications involving steel, steel forgings and general engineering components. The CO05S carbide grade is a yellow grade intended for heavy roughing and semi-finishing, making it suitable for demanding steel machining operations where reliable cutting performance and edge stability are important.
The TNMG FW geometry features a negative triangular insert configuration with multiple usable cutting edges. This design makes the insert suitable for compatible TNMG CNC turning tool holders and a wide range of industrial turning operations.
Cargo Carbide TNMG FW CO05S inserts are suitable for manufacturers involved in automotive components, shafts, bushes, general engineering parts, forged components and other steel-machining applications. The insert can be selected according to the required nose radius, cutting depth, feed rate, machine rigidity and workpiece geometry.
The CO05S grade is identified by its yellow colour in the Cargo Carbide grade system and is intended for steel machining under material group P. It is particularly suitable for heavy roughing and semi-finishing of steel forgings and general machining applications.
With the appropriate cutting parameters and compatible tool holder, Cargo Carbide TNMG FW CO05S provides a practical solution for production CNC turning where consistent machining performance and dependable carbide tooling are required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cargo Carbide |
| Insert Type | TNMG |
| Geometry | FW |
| Grade | CO05S |
| Grade Colour | Yellow |
| Work Material | Steel |
| Material Group | P |
| Insert Shape | Triangular |
| Insert Type | Negative |
| Application | CNC Turning |
| Main Operations | Heavy Roughing / Semi-Finishing |
| Tool Type | Carbide Turning Insert |
| Machine | CNC Lathe / CNC Turning Machine |
Available TNMG Sizes
If your product family includes these sizes:
| Product | Nose Radius |
|---|---|

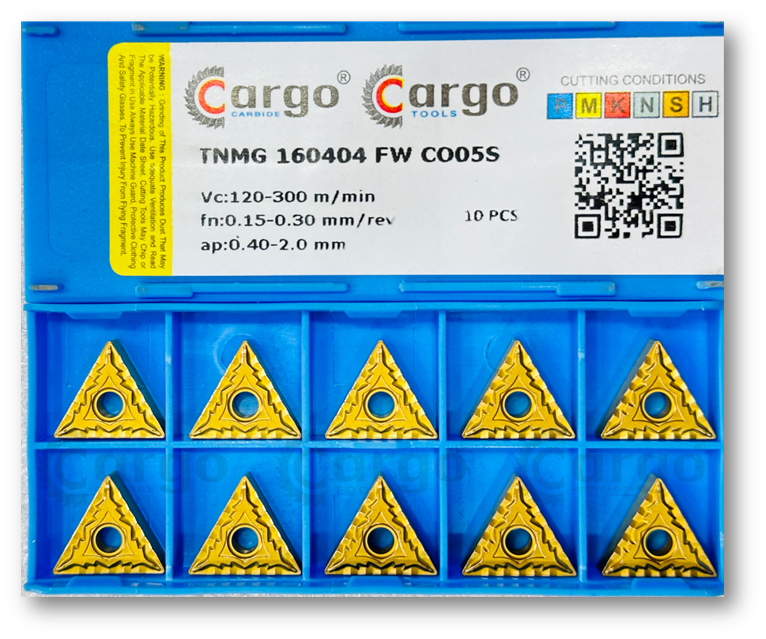

| TNMG 160404 FW CO05S | 0.4 mm |

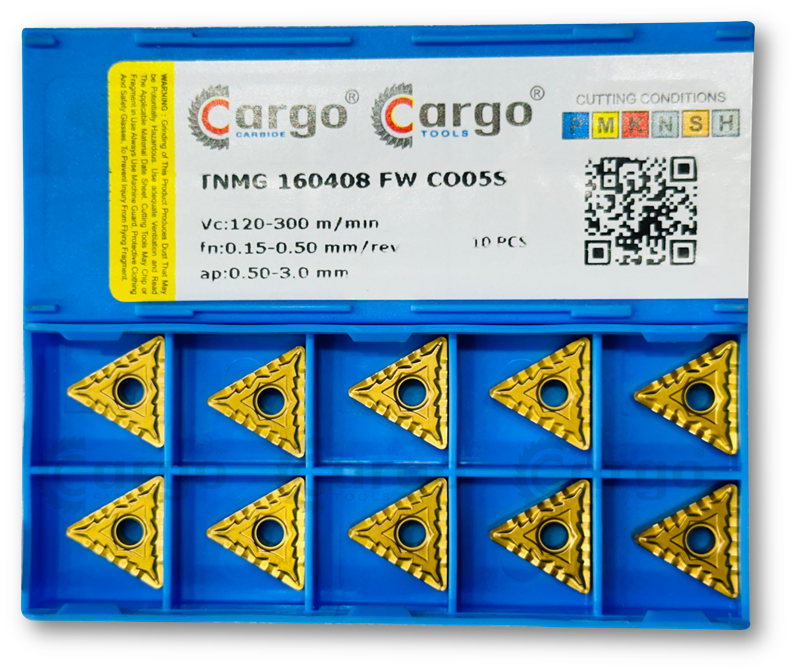

| TNMG 160408 FW CO05S | 0.8 mm |
| TNMG 160412 FW CO05S | 1.2 mm |
The appropriate nose radius should be selected according to the machining operation, workpiece geometry, cutting depth, feed and machine conditions.
CO05S Grade Information
Cargo Carbide CO05S — Steel Machining Grade
CO05S is a yellow carbide grade in the Cargo Carbide grade system and is intended for steel machining.
Recommended applications:
- Heavy steel roughing
- Semi-finishing
- Steel forgings
- General machining
- CNC turning
- Production machining
The grade should be matched with the appropriate insert geometry and cutting parameters for the specific machining application.
TNMG FW Geometry
The TNMG insert has a triangular negative geometry and provides multiple usable cutting edges.
The FW geometry can be used for suitable CNC turning applications where the combination of insert geometry, grade and machining conditions matches the workpiece material.
Typical applications
- External turning
- Rough turning
- Semi-finishing
- Steel component machining
- Forged component machining
- General engineering
Applications
Cargo Carbide TNMG FW CO05S can be used for suitable:
- Steel CNC turning
- Steel forging machining
- Heavy roughing
- Semi-finishing
- Automotive component machining
- Shaft turning
- Bush machining
- General engineering
- Industrial component production
- CNC lathe operations
Why Choose Cargo Carbide TNMG FW CO05S?
- CO05S yellow carbide grade
- Designed for steel machining
- Suitable for heavy roughing
- Suitable for semi-finishing
- TNMG negative triangular geometry
- Multiple usable cutting edges
- Available in multiple TNMG sizes
- Suitable for compatible TNMG tool holders
- Suitable for CNC turning applications
- Cargo Carbide industrial tooling solution
What is TNMG FW CO05S?
TNMG FW CO05S is a Cargo Carbide carbide turning insert combination consisting of TNMG geometry, FW geometry and the CO05S steel machining grade. It is intended for suitable CNC turning applications involving steel.
What is CO05S carbide grade used for?
Cargo Carbide CO05S is a yellow grade intended for heavy roughing and semi-finishing of steel forgings and general machining applications.
What material can TNMG FW CO05S machine?
TNMG FW CO05S is intended primarily for steel machining, corresponding to material group P in the Cargo Carbide grade system.
Is TNMG FW CO05S suitable for CNC turning?
Yes. It is designed for compatible CNC turning and CNC lathe applications, particularly steel roughing and semi-finishing.
What sizes are available for TNMG FW CO05S?
Depending on your product stock, the range can include TNMG 160404, TNMG 160408 and TNMG 160412.
What is the difference between TNMG 160404, 160408 and 160412?
The primary difference is the nose radius: 0.4 mm, 0.8 mm and 1.2 mm, respectively. The appropriate radius depends on the machining application and cutting conditions.
